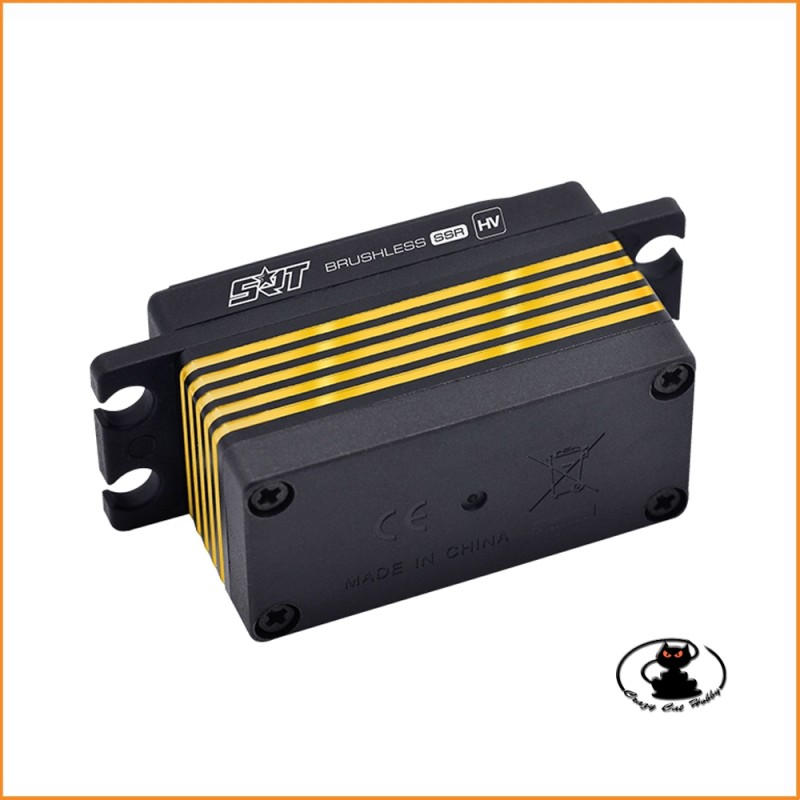

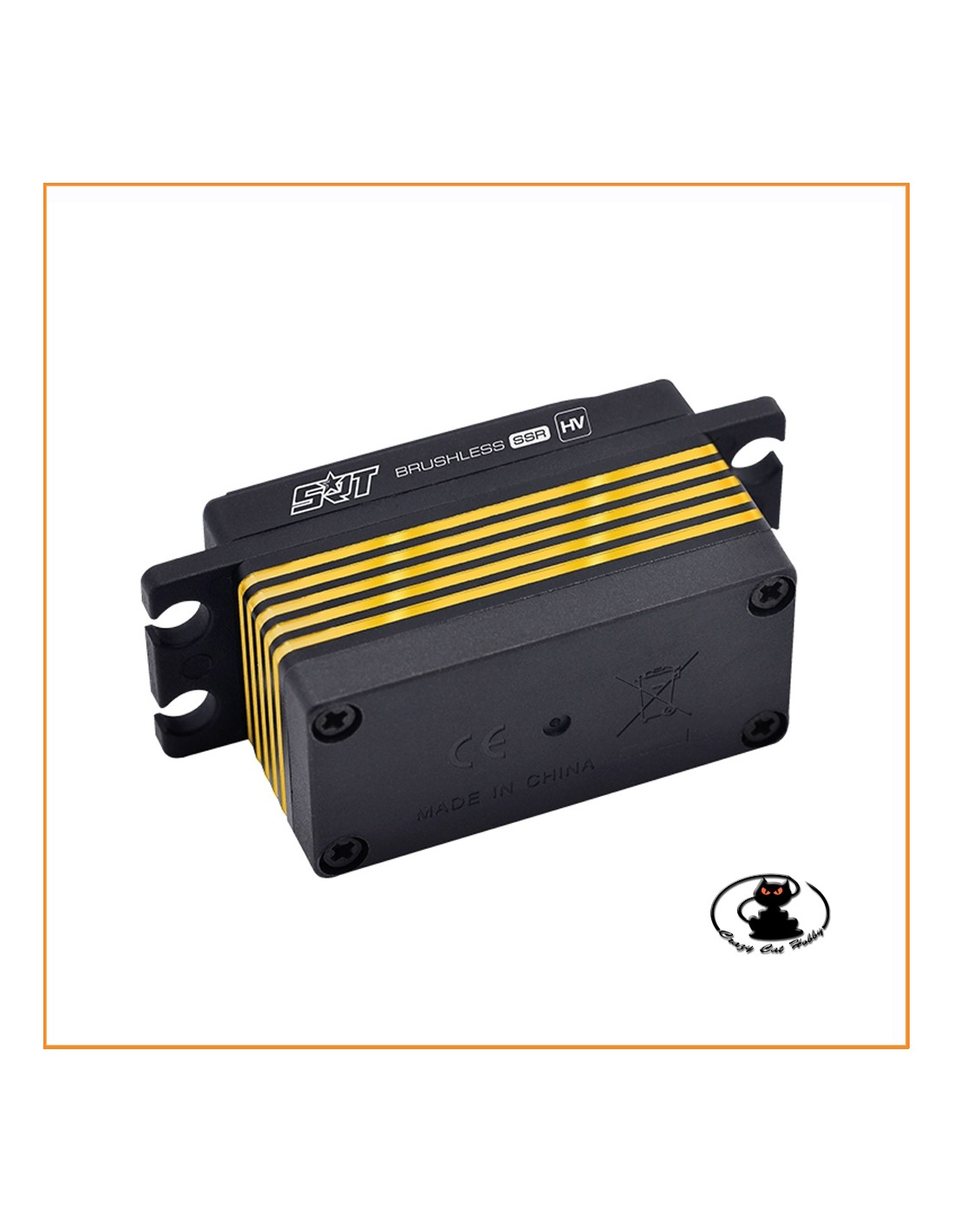

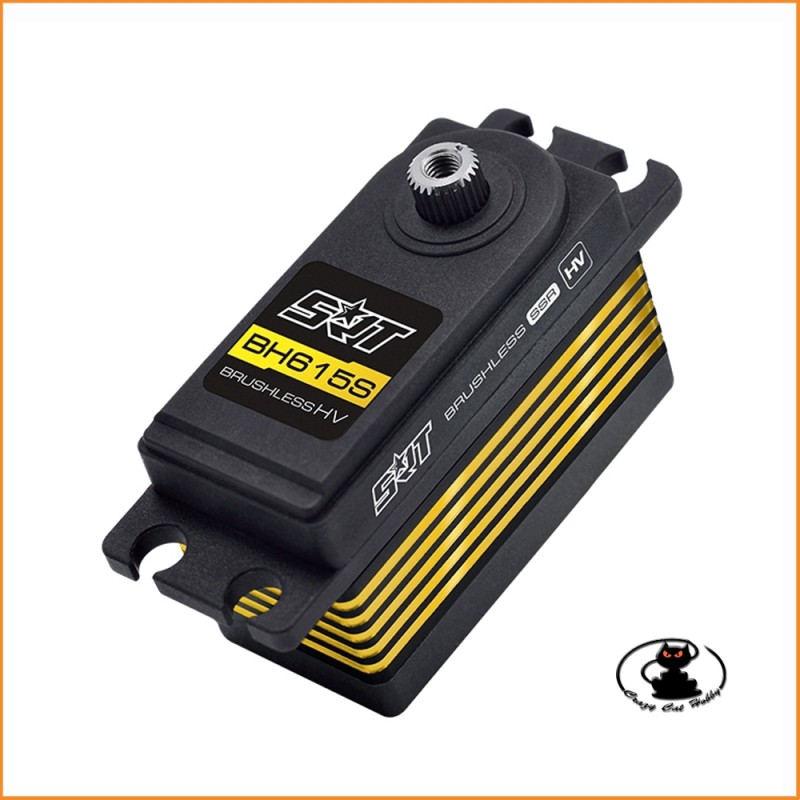

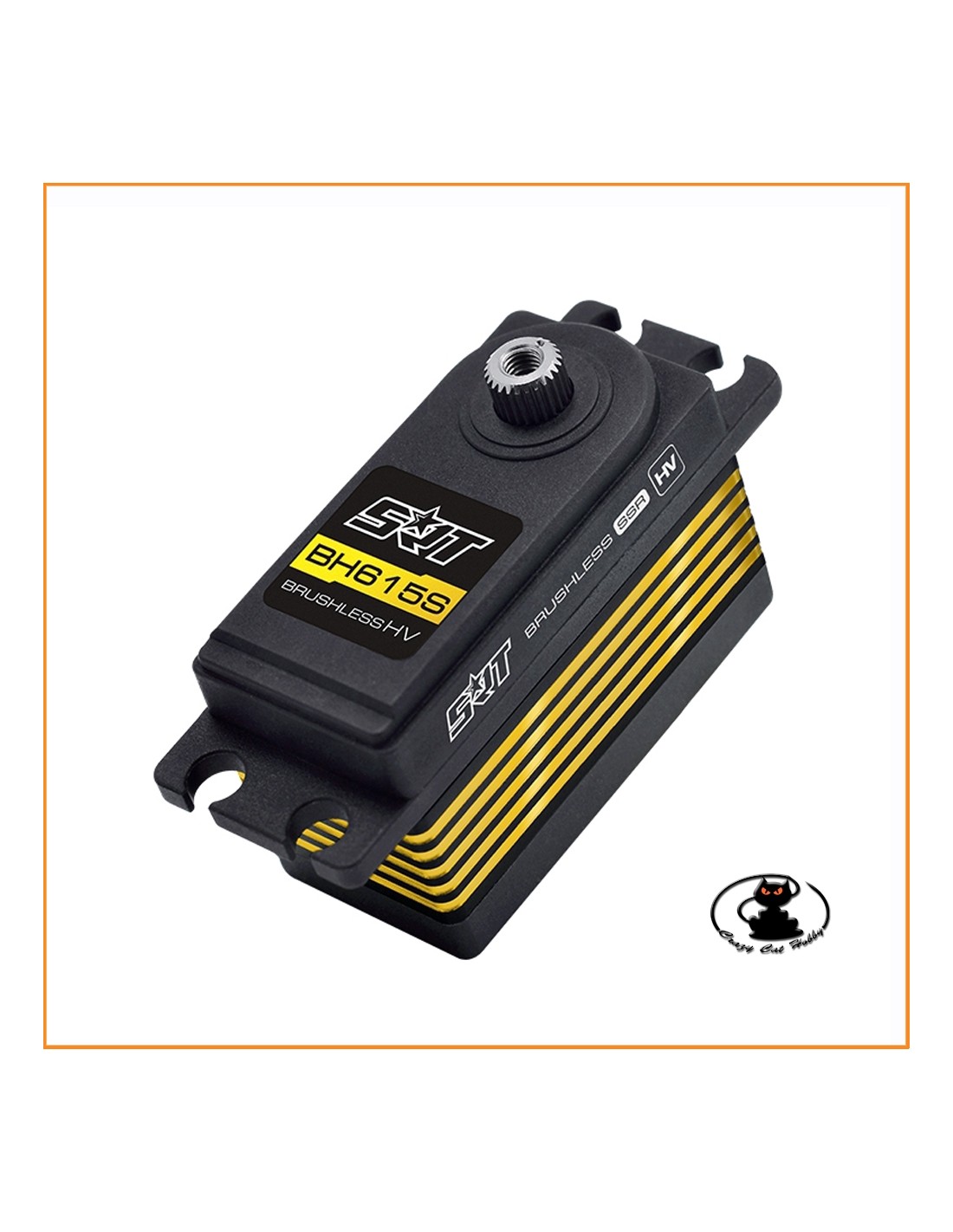

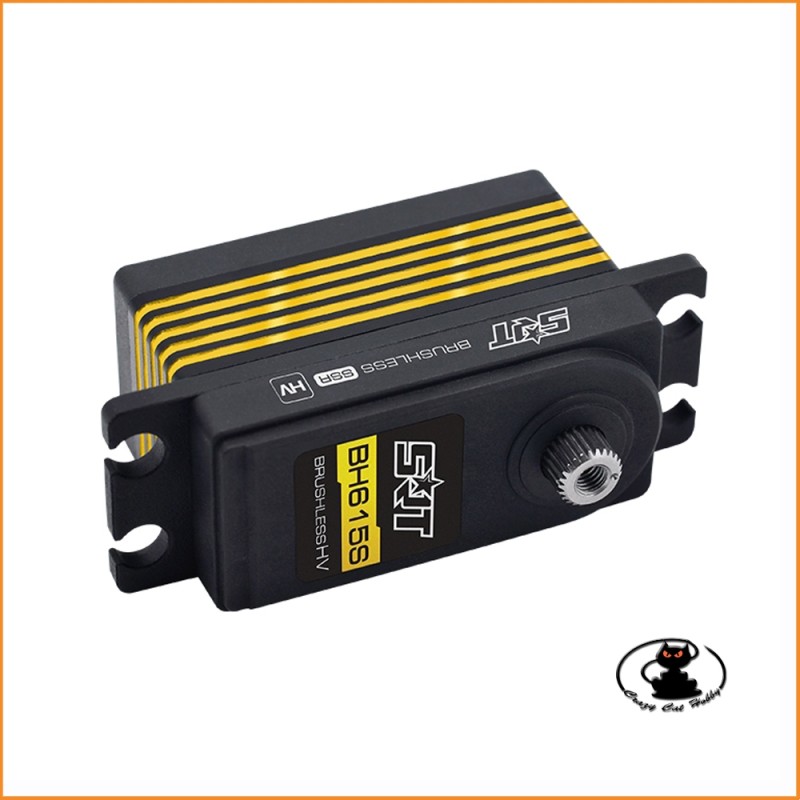

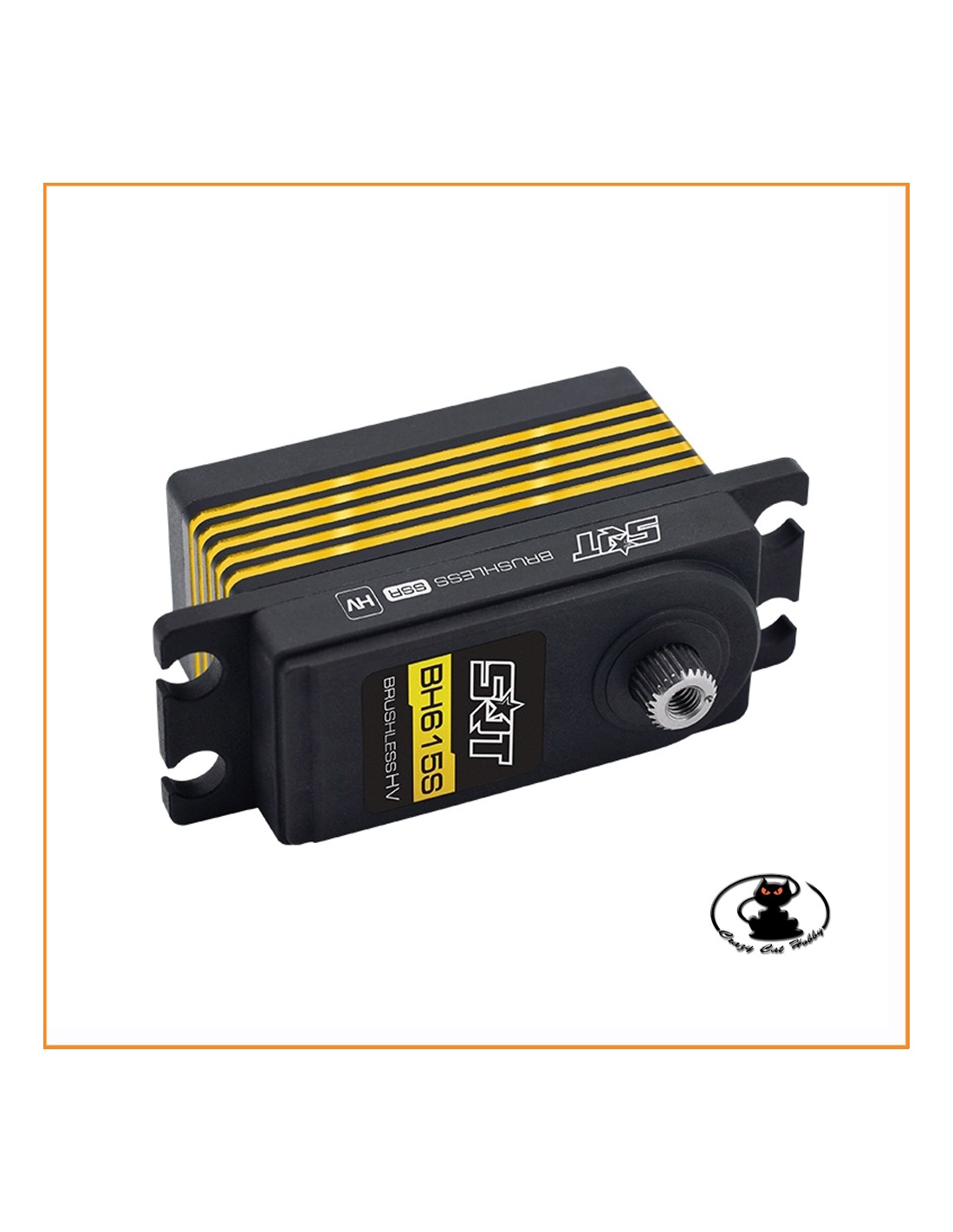

SRT BH615S servo 15 kg brushless low profile (low profile) SSR - HV 6 / 8.4vcable 80 mm lenght

Main features :

• Ideal for 1/10 scale applications
• Ultra fast, 60 ° in 0.045 at 8.4 Volt
• SSR system
• Incredible efficiency and low energy consumption
• Aluminum case for good heat dissipation
• 2 bearings
• 25T ribbed shaft

Technical specifications :

• Servo type: digital
• Motor type: Brushless
• Gear material: titanium and aluminum
• working frequency: 1520μs / 330hz
• working voltage: dc 6.0-8.4v
• operating temperature range: -10 to + 60 degrees
• operating speed (6.0V): 0.062sec / 60 degree no-load
• operating speed (7.4v): 0.052 sec / 60 degree no-load
• operating speed (8.4v): 0.045 sec / 60 degree no-load
• stall torque (6.0V): 10.0kg.cm (138.8oz / in)
• stall torque (7.4v): 13.0kg.cm (180.5oz / in)
• stall torque (8.4v): 15.0kg.cm (208.3oz / in)

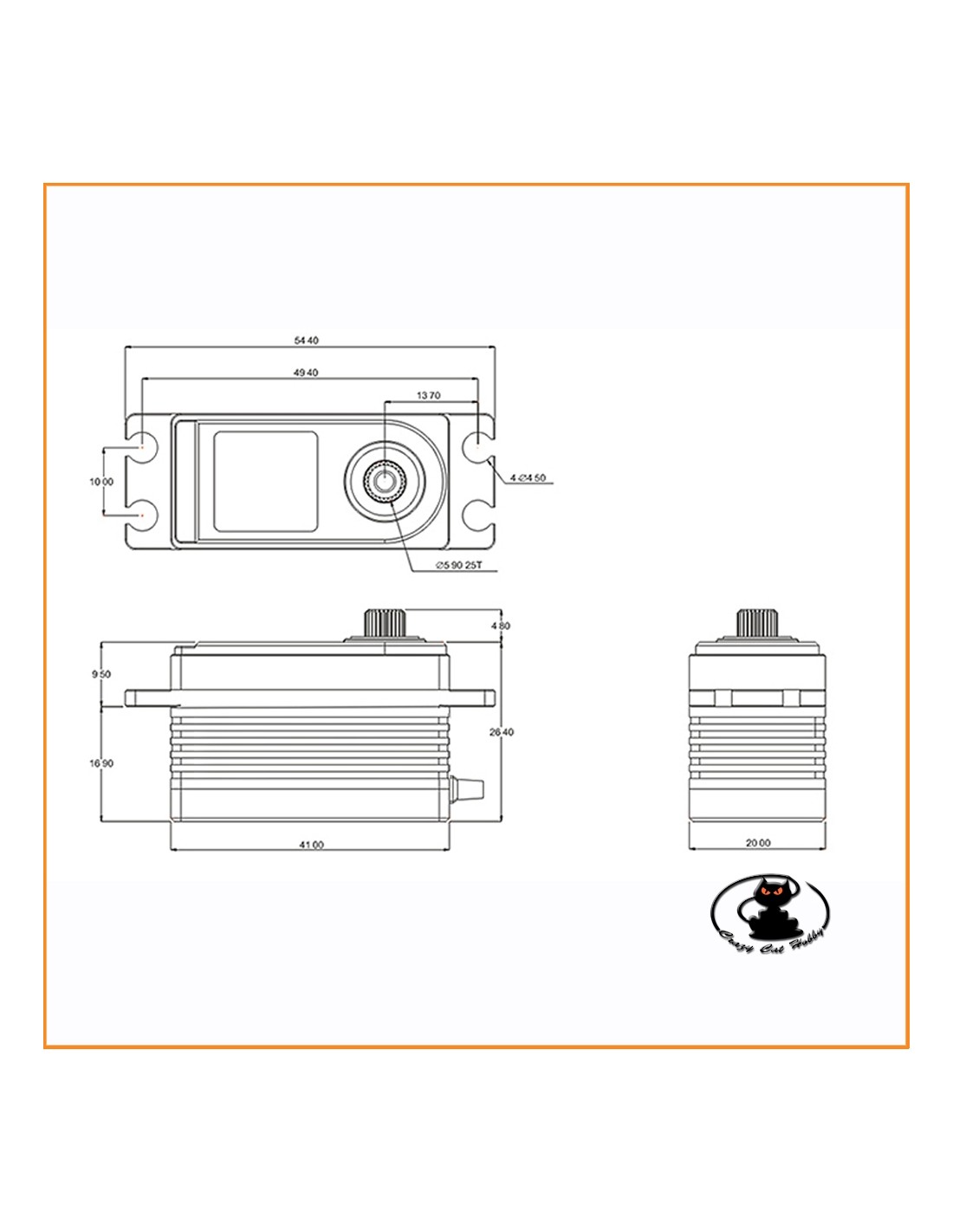

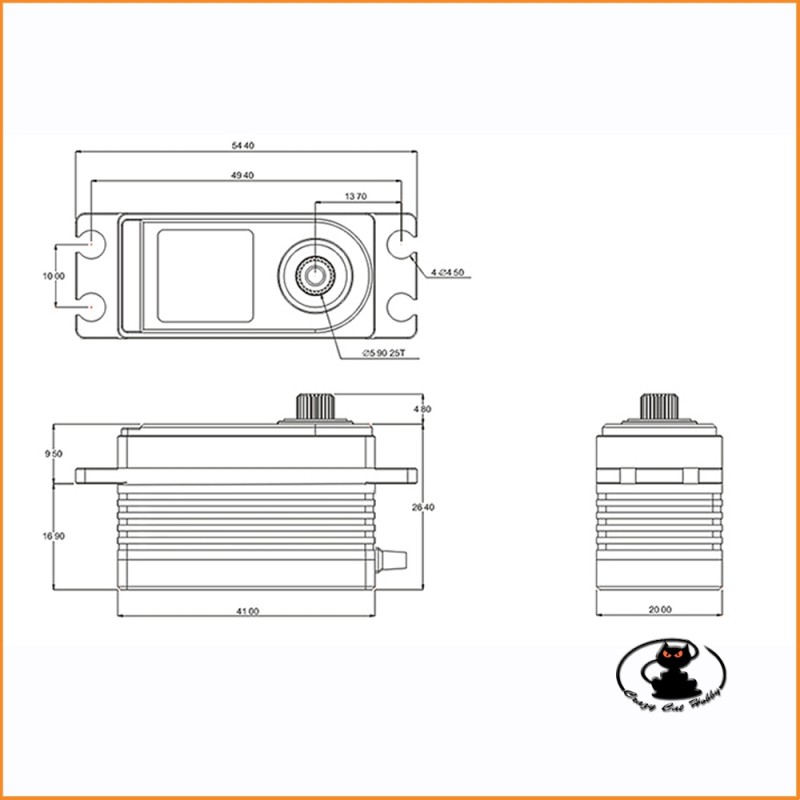

• size: 41.0x20.0x26.4 mm / 1.61x0.79x1.04 in
• weight: 43.0g (1.52oz)
• connector cable length: jr 80 mm

Brand: SRT Racing

Art .: BH615S

EAN : 6969006150062

Package Contents: 1 Servo BH615S accessories for use
