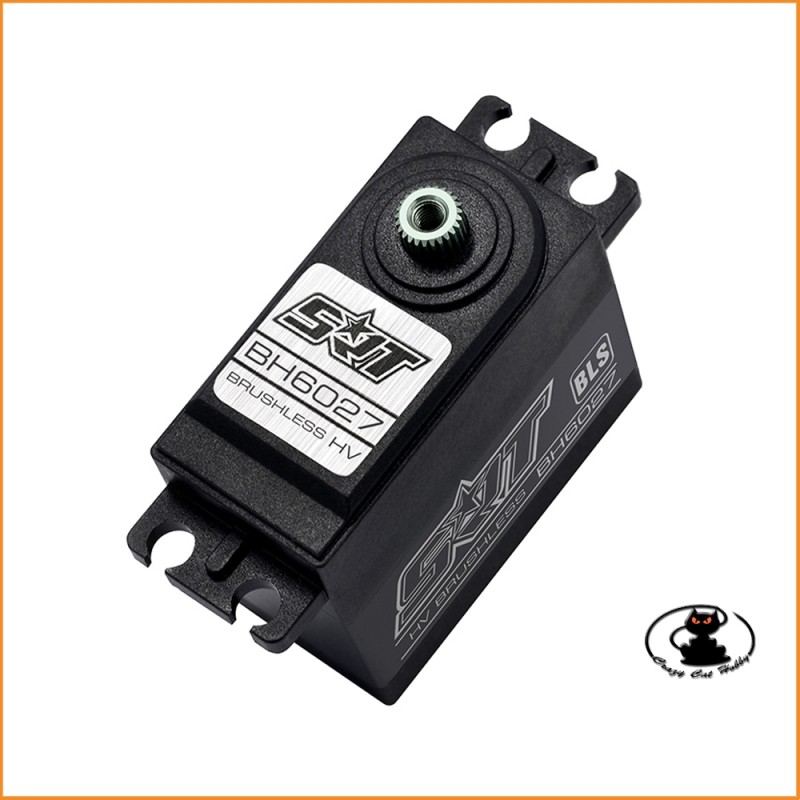

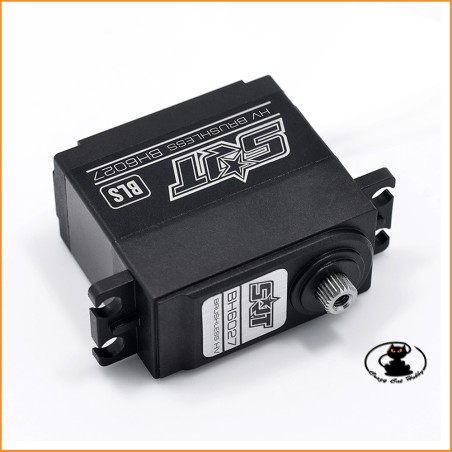

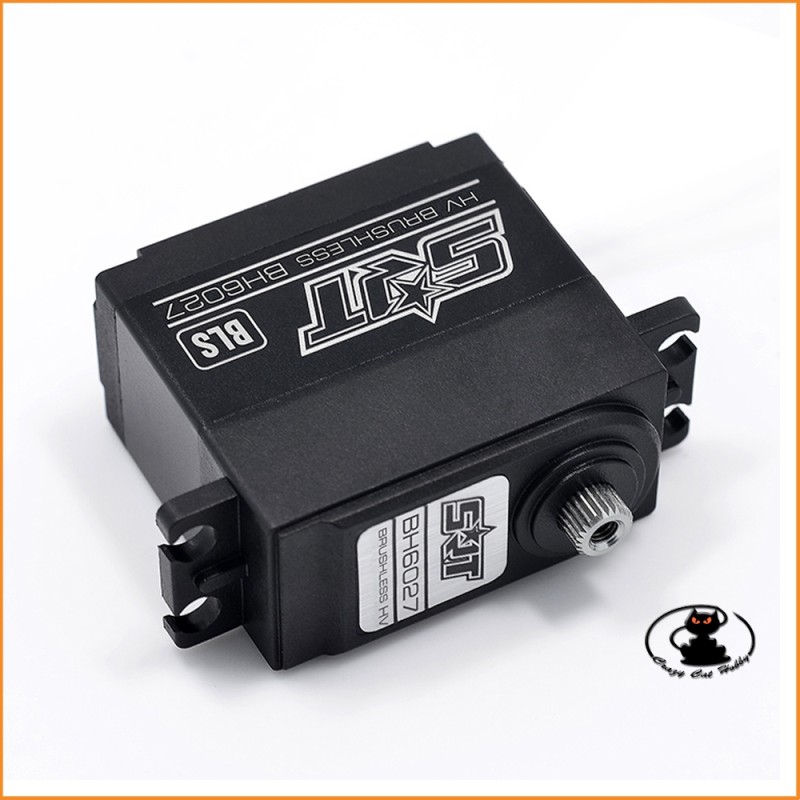

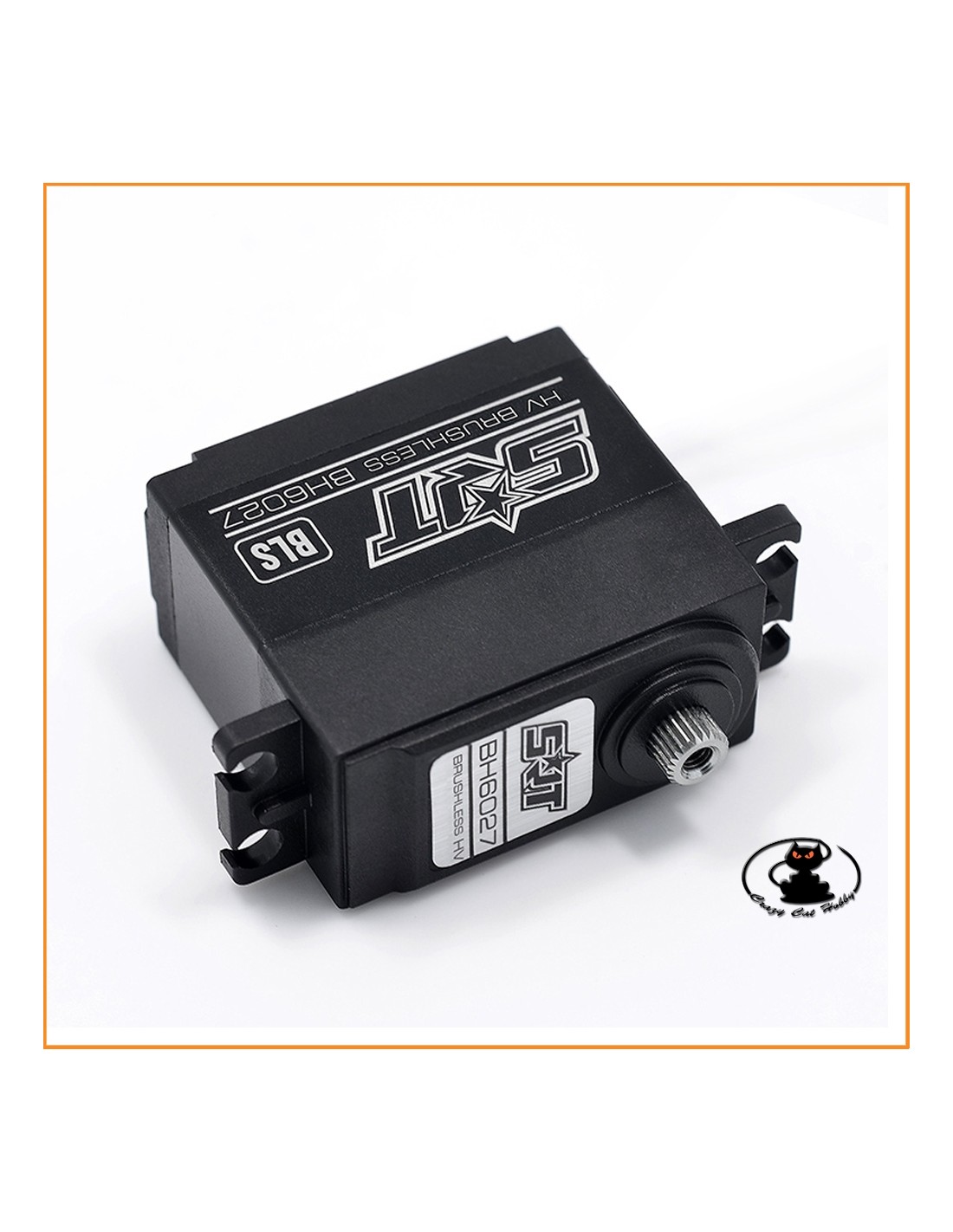

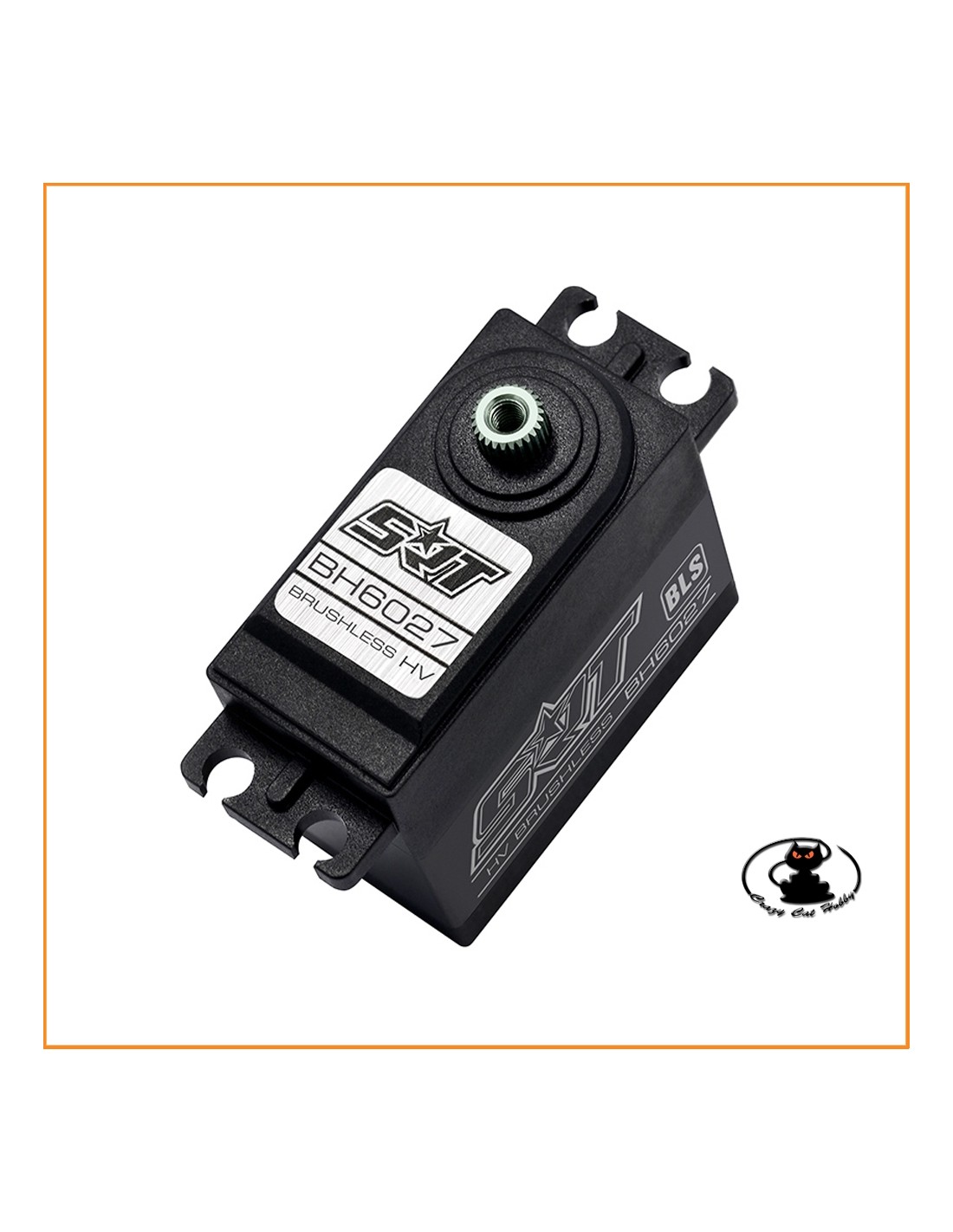

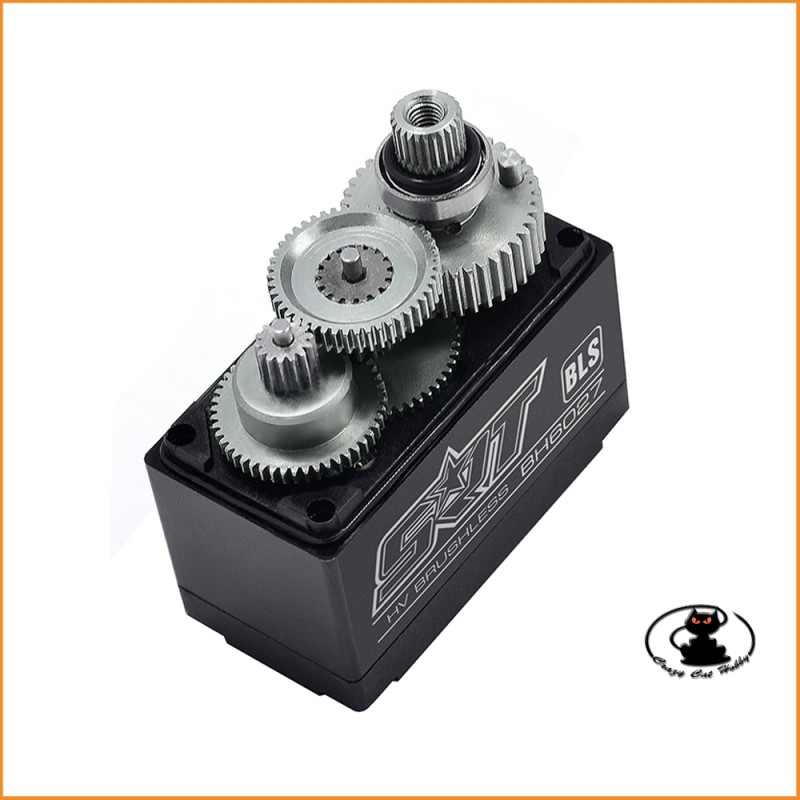

SRT BH6027S Servo Brushless - 27 Kg - 6-8.4 v - 60° 0,075 High Torque

SRT BH6027 Servo Brushless - 27 Kg - 6-8.4 v - 60° 0,075


Our previous price €95.00
€86.00 Save €9.00
Shipping excluded

SRT BH6027 Servo Brushless - 27 Kg - 6-8.4 v - 60° 0,075

Garanzia e assistenza ITALIANA

Quantity
Add to Wishlist
Add to Compare
There are not enough products in stock


SRT BH6027 Servo Brushless - 27 Kg - 6-8.4 v - 60° 0,075

Garanzia e assistenza ITALIANA

Specifications:

  • Ideal for 1/8 -1/10 scale on-road and off-road applications
  • Superior holding torque
  • Incredible efficiency and low power consumption
  • The standard dimensions make it perfect for vehicles that can benefit from a high quality servo
  • Double main bearings

Technical specifications :

  • Type: digital
  • Bearing: double
  • Motor type: brushless

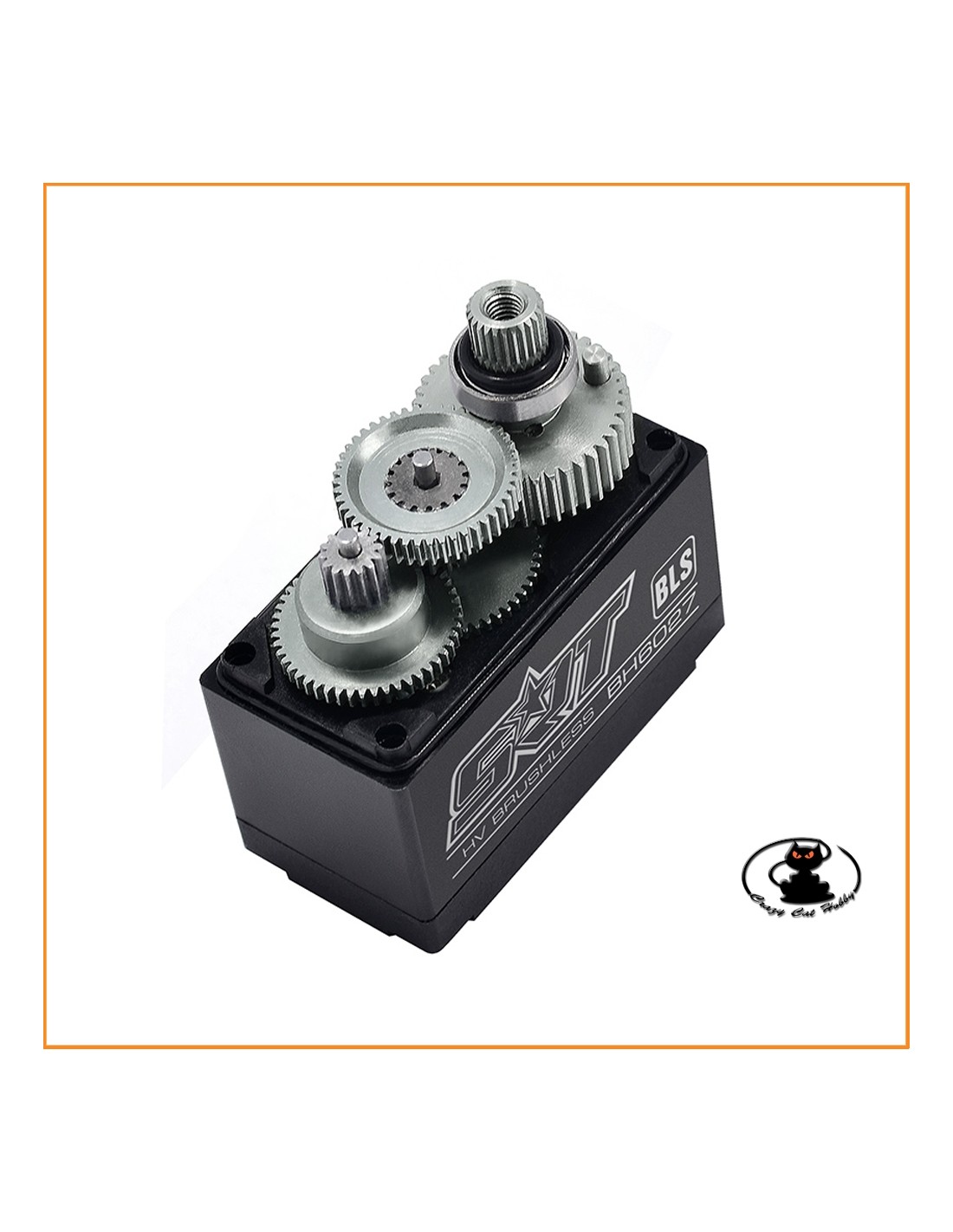

  • Gear material: titanium and aluminum
  • control system: pulse width control
  • working frequency: 1520μs / 330hz
  • Working voltage: DC6.0-8.4v
  • operating temperature range: -10 to + 60 degrees
  • Operating speed (6.0v): 0.10 sec / 60 degree no-load
  • operating speed (7.4v): 0.08 sec / 60 degree no-load
  • operating speed (8.4v): 0.075 sec / 60 degree no-load
  • stall torque (6.0v): 21.0kg.cm (291.6 oz / in)
  • stall torque (7.4v): 25.0kg.cm (319.4oz / inch)
  • stall torque (8.4v): 27.0kg.cm (374.9oz / inch)
  • potentiometer drive: direct drive

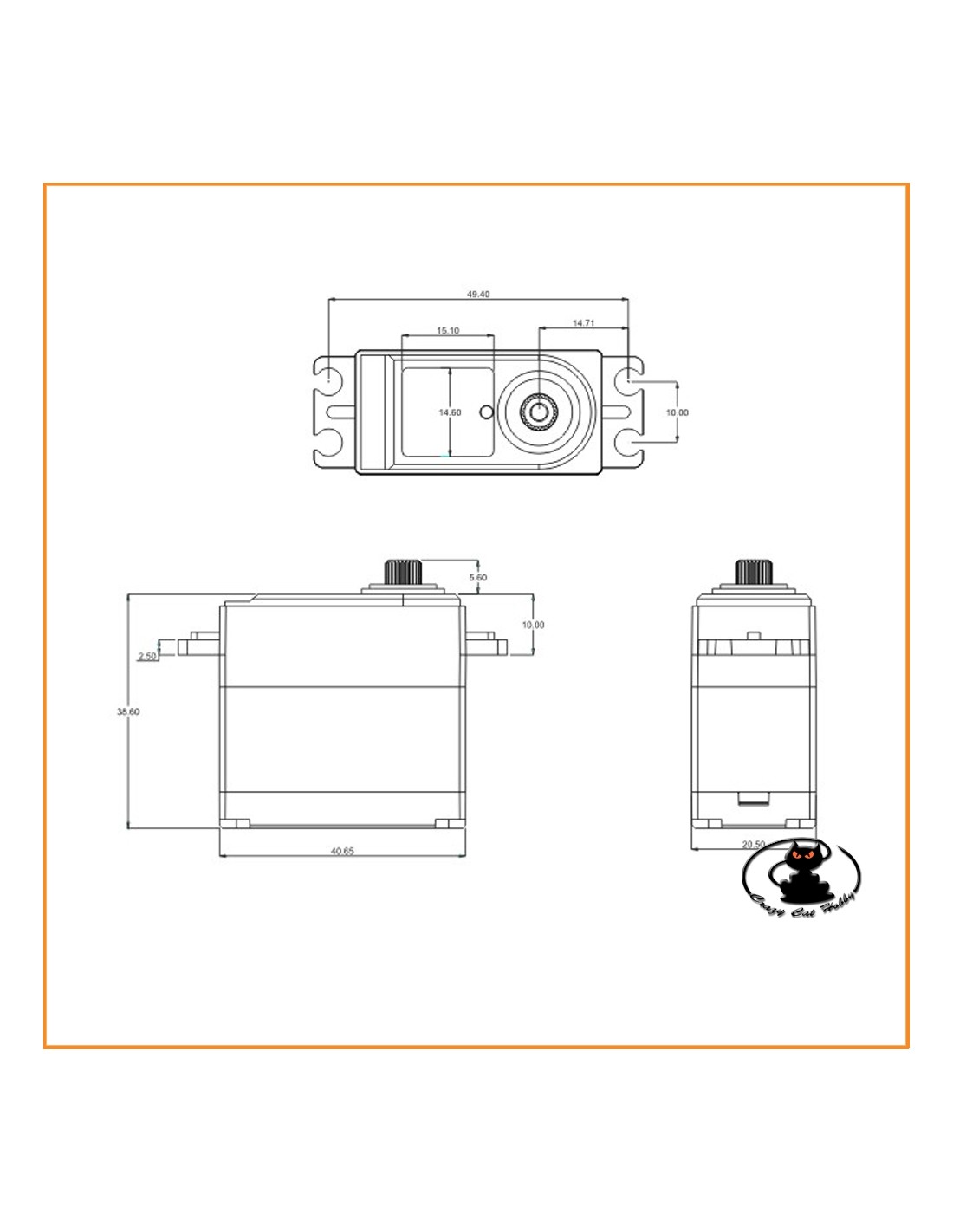

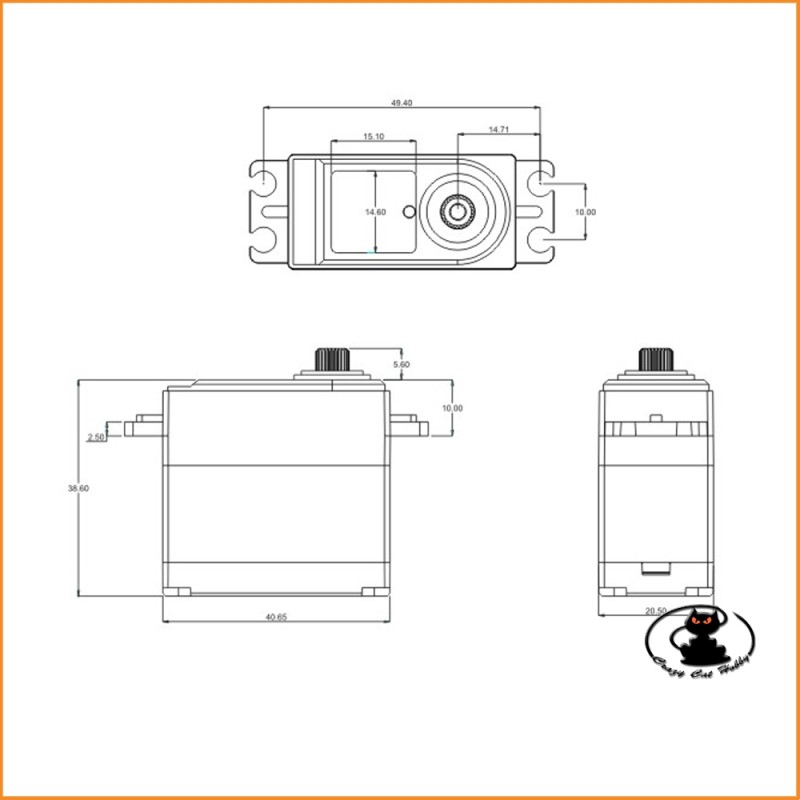

  • size: 40,7x20,5x38.5mm / 1.57x0.79x1.49inch
  • weight: 65.0g (2.47oz)
  • connector wire length: jr 250 mm

Brand: SRT

Art.: BH6027

EAN : 6969006002712

Package contents: 1 actuator BH6027

BH6027-6969006002712
