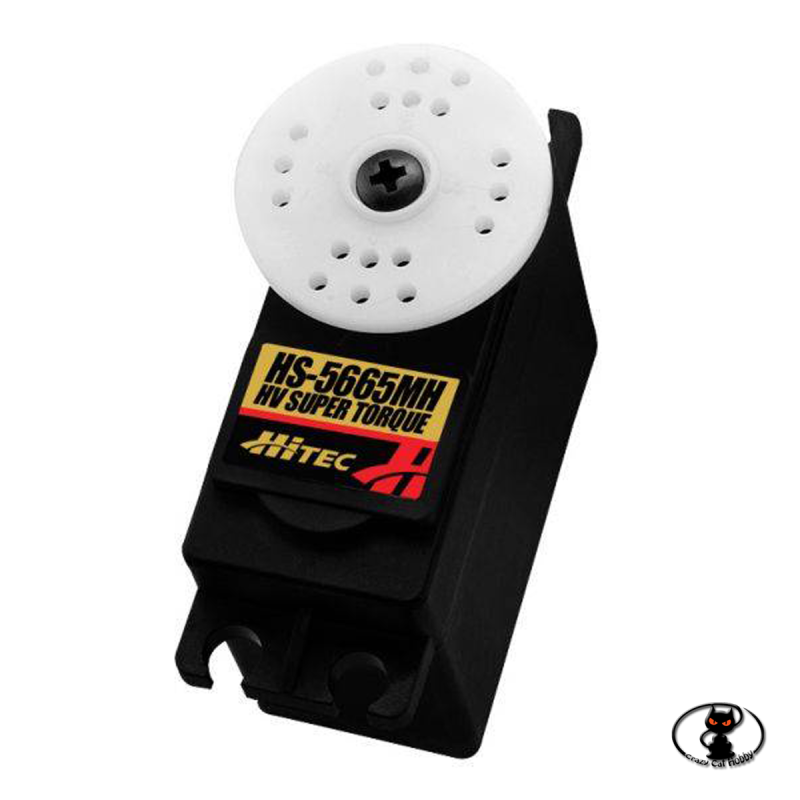

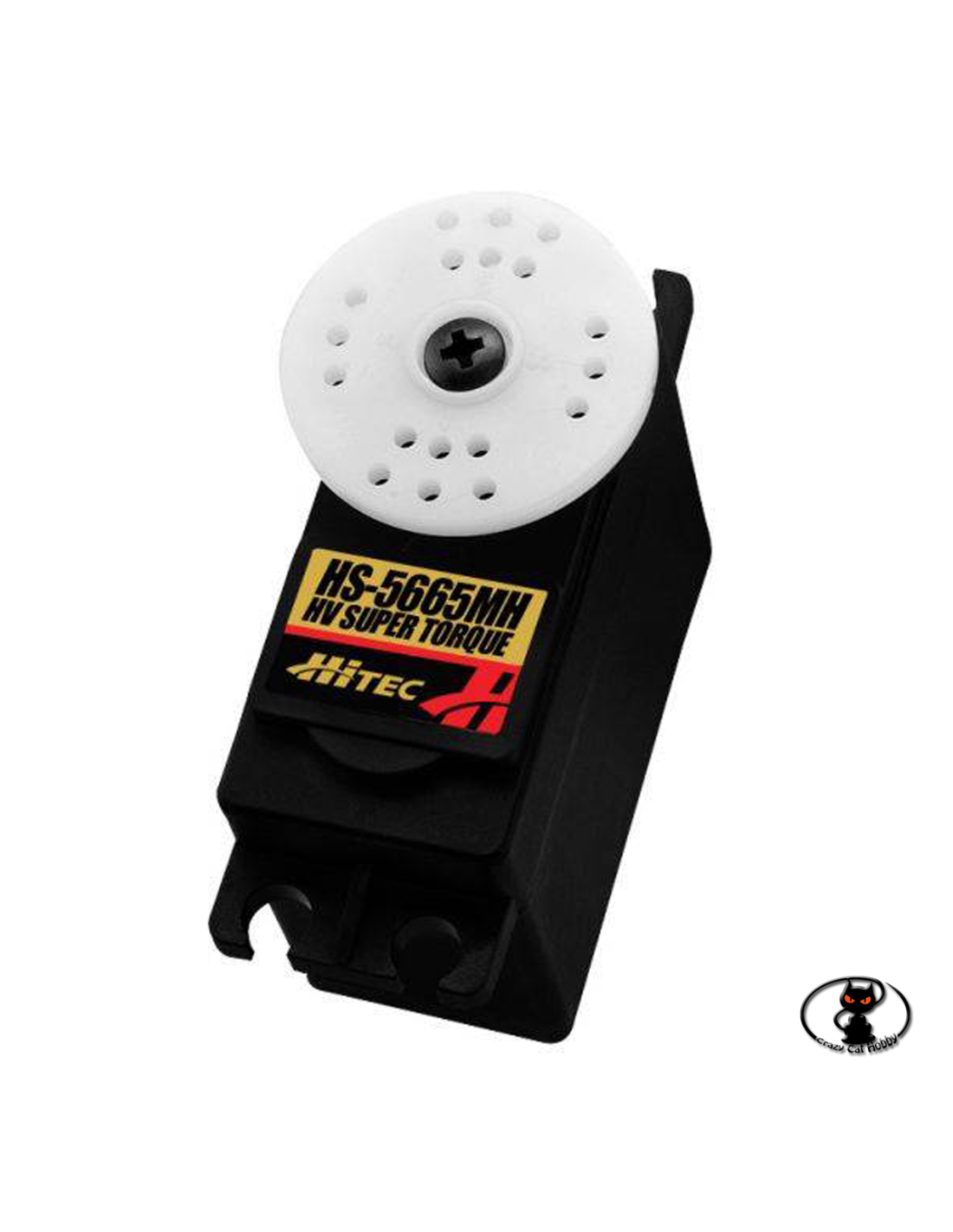

The HITEC HS-5665MH High Speed HV servo is a servo designed to work powered by 2 LiPo cells for maximum performance. Thanks to the high strength metal gear box and the refined programmable driving circuit, this servo is perfect for many applications.
Ideal for cars 1/10, 1/8, off road but also class 60 helicopters, 2mt class maximodelli, and maxi gliders scale 1: 3.75 - 1: 3
Detailed description of the features:
- Programmable Digital Circuit
- Power supply from 6.0V to 7.4 compatible with 2S LiPO
- Metal gears
- Engine optimized to work at 7.4V
- Up to 10Kg / cm of torque !!
- Main shaft supported by double bearing
- Programmable functions (via HPP-21, HPP-21plus and HFP-20)
- DeadBand width
- Direction of rotation
- Rotation speed
- centering
- FailSafe on / off
- FailSafe position
Technical features :
- Servo Type: Digital Standard
- Power supply: 6.0V - 7.4V (2S LiPo)
- Application: Speed
- Pair at 6.0V: 8.8Kg / cm
- Pair at 7.4V: 10Kg / cm
- Speed at 6.0V: 0.16Sec / 60 grd
- Speed at 7.4V: 0.14Sec / 60 grd
- Gears: Metal
- Number of bearings: 2
- Programmable: Yes
- Engine Type: Cored
- Dimensions: 41x20x38 mm.
- Weight: 60 Grams
