SMARTCOM COMMUNICATION HEADSETS

The Smart-Com system is the result of close collaboration with many racers, it has been tailor-made for radio controlled model (RC) racing, making and for people who need effective hands-free communication.

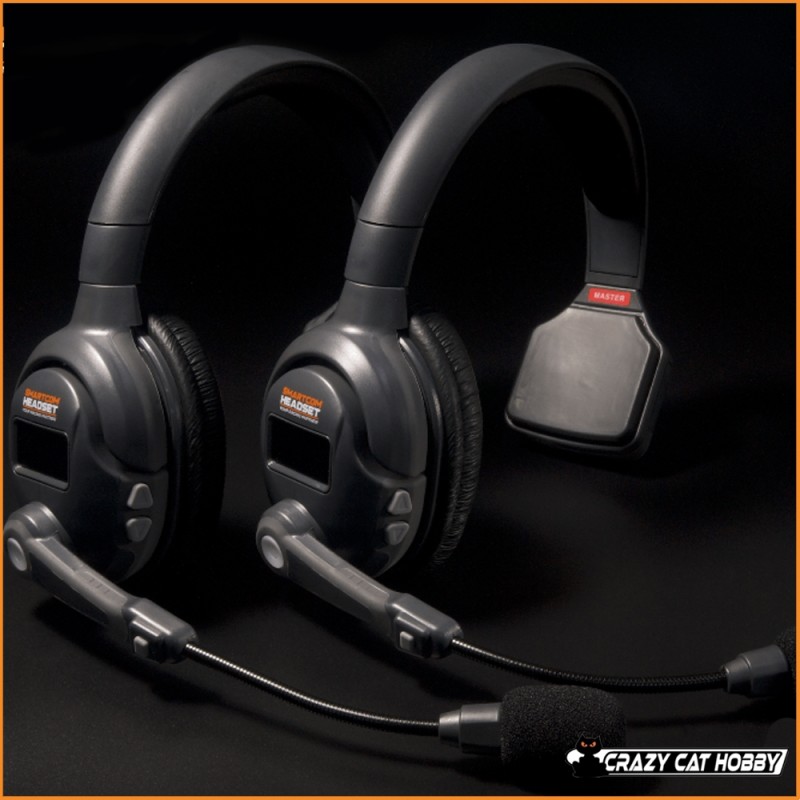

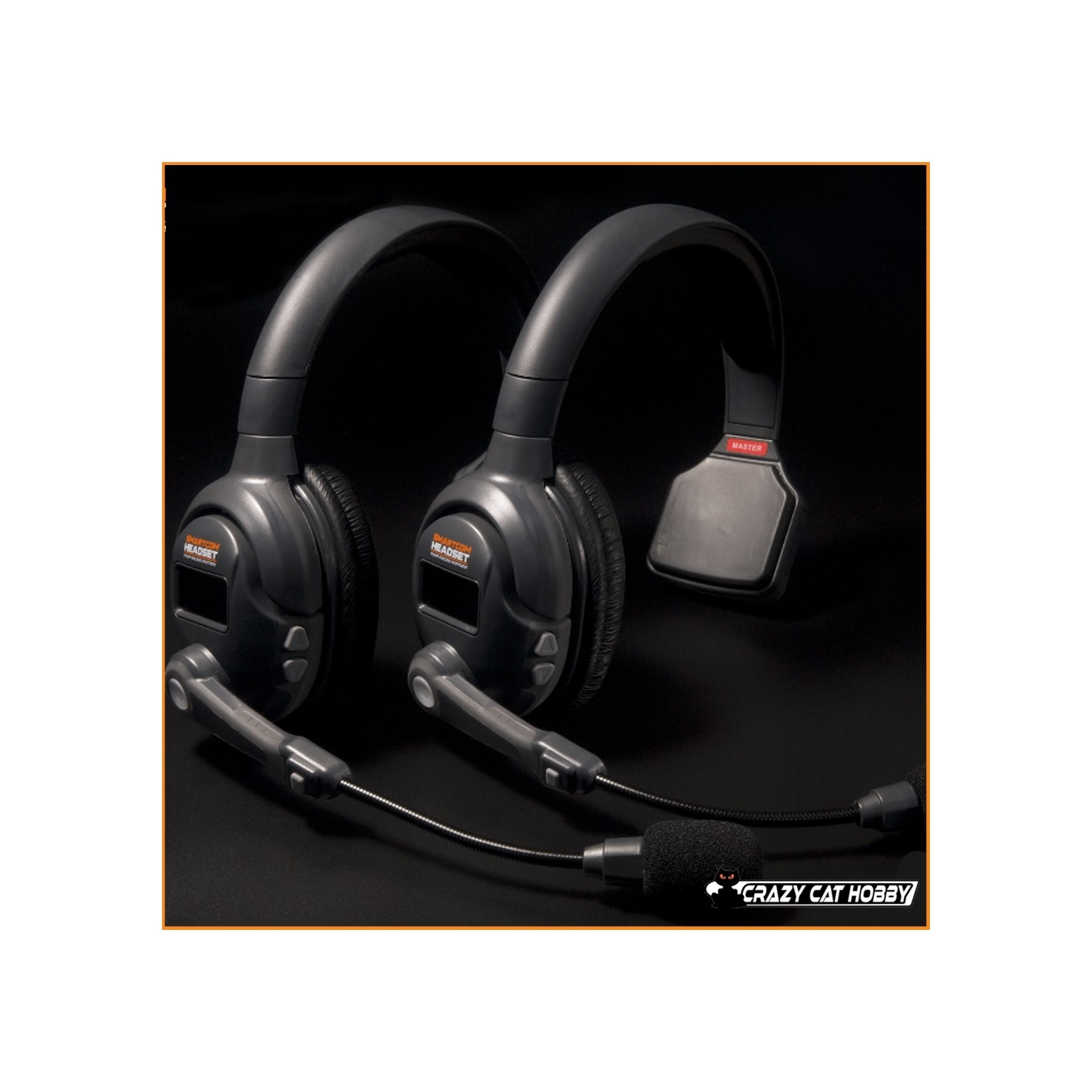

The Smart-Com wireless headset system consists of a "Master" headset and a maximum of four "Remote" headsets.

Smart-Com integrates enhanced digital wireless technology (DECT) with the Dialog SC14S DECT module to allow you to communicate clearly in real time, within a radius of 300 meters. It is approved for FFVRC, EFRA and IFMAR races.

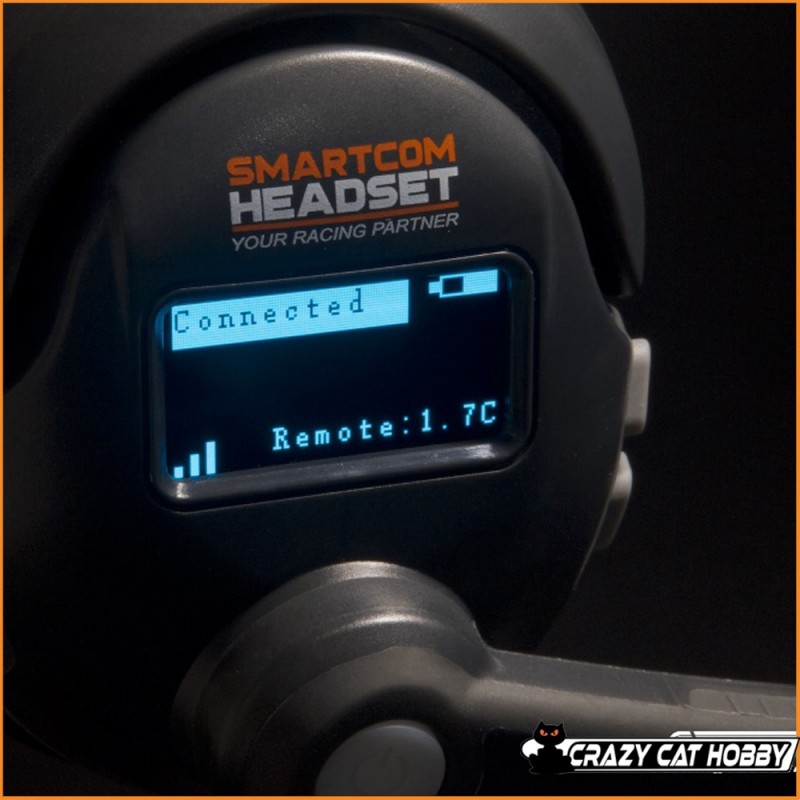

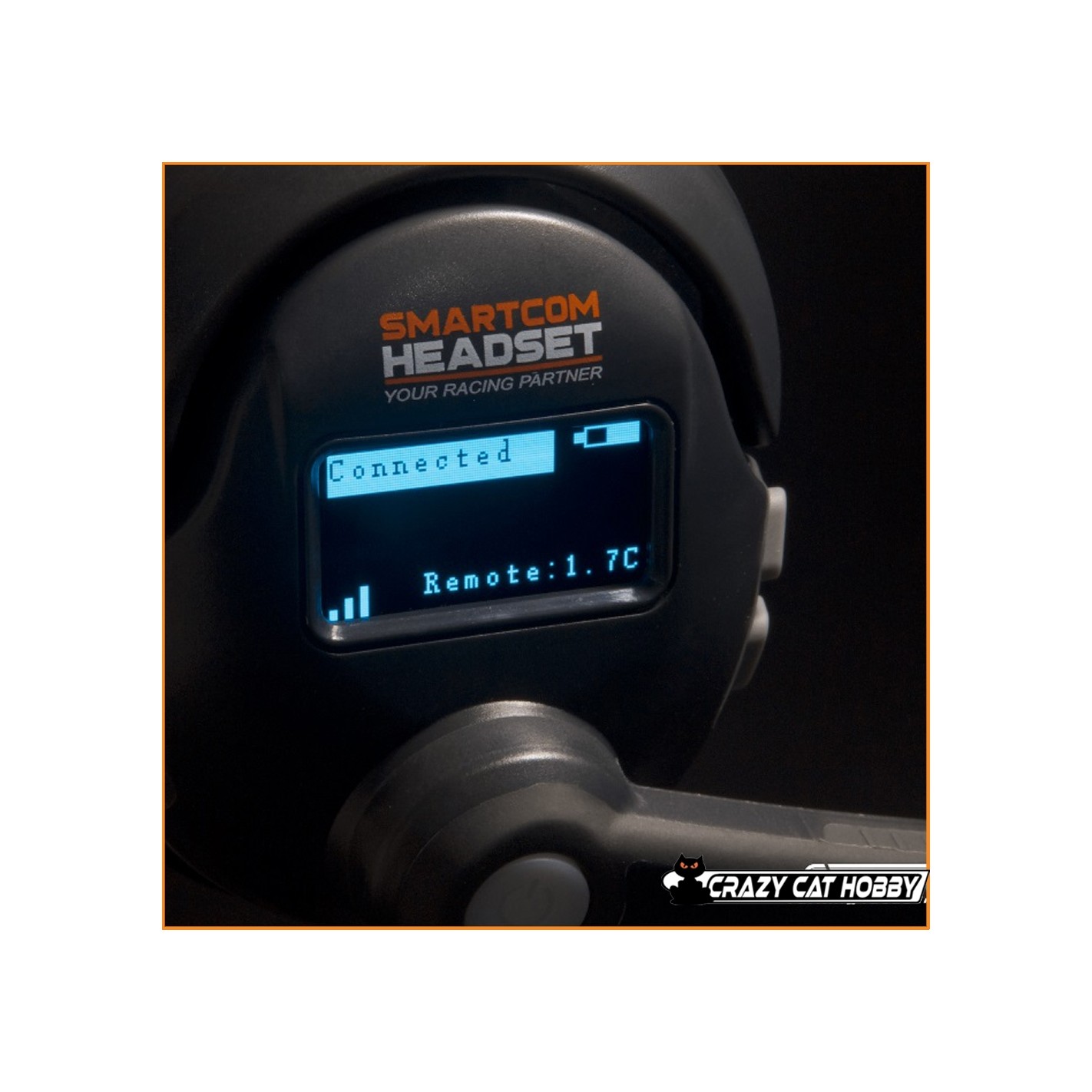

The Smart-Com electronic system consists of the battery, an internal charger and a 0.96 inch LCD screen which are housed in the headset. The system works with a base station and the headsets are programmable in the field.

Smart-Com headsets allow simultaneous conversation and two-way voice communication with partners. The flexible microphone rod has a 270 ° rotational movement and can be easily swapped between left and right side, using an auxiliary switch. The microphone can be muted with a simple rocking motion of the microphone stick.

Smart-Com headsets also include a SmartPit programmable voice prompt feature. This function includes training mode, stopwatch mode and race mode. The start / pause / reset function is controlled by the mechanics team using the button on the microphone arm.

Training Mode:

Voice feedback of lap time feedback to the driver and remote headset immediately after the pit crew activates the button on the mic arm.

Timer mode:

Programmable timer reminder pre-set by the main headset. Timer voice prompt reminder to driver and remote headset automatically when triggered.

Race mode:

Pre-set programmable race time and fuel reminder from the main headset. The voice reminders of the time of the race and the time of refueling will automatically remind once the race has been started by the pit team.

Replaceable lithium battery:

The Smart-Com wireless headset comes with a rechargeable lithium battery that is installed in the headset. The batteries are Standard SLB-1137D lightweight type.

They fully charge in about 1 hour and once fully charged the headset can work for up to 4 hours. As they are removable, they can be charged externally with any LP Standard charger and can be changed in seconds (charger sold separately).

Internal Charger :

All Smart-Com headsets are built with an internal charger inside the headset battery compartment and are charged using a USB-C cable with a standard 5V / 1A adapter.

When each battery reaches its full charge, the corresponding LED will change from red to green indicating that the battery is ready for use. Magnetic adapters and cables are optional accessories. The accessories allow the headset to have a quick “plug-in and release” of the charging cable.

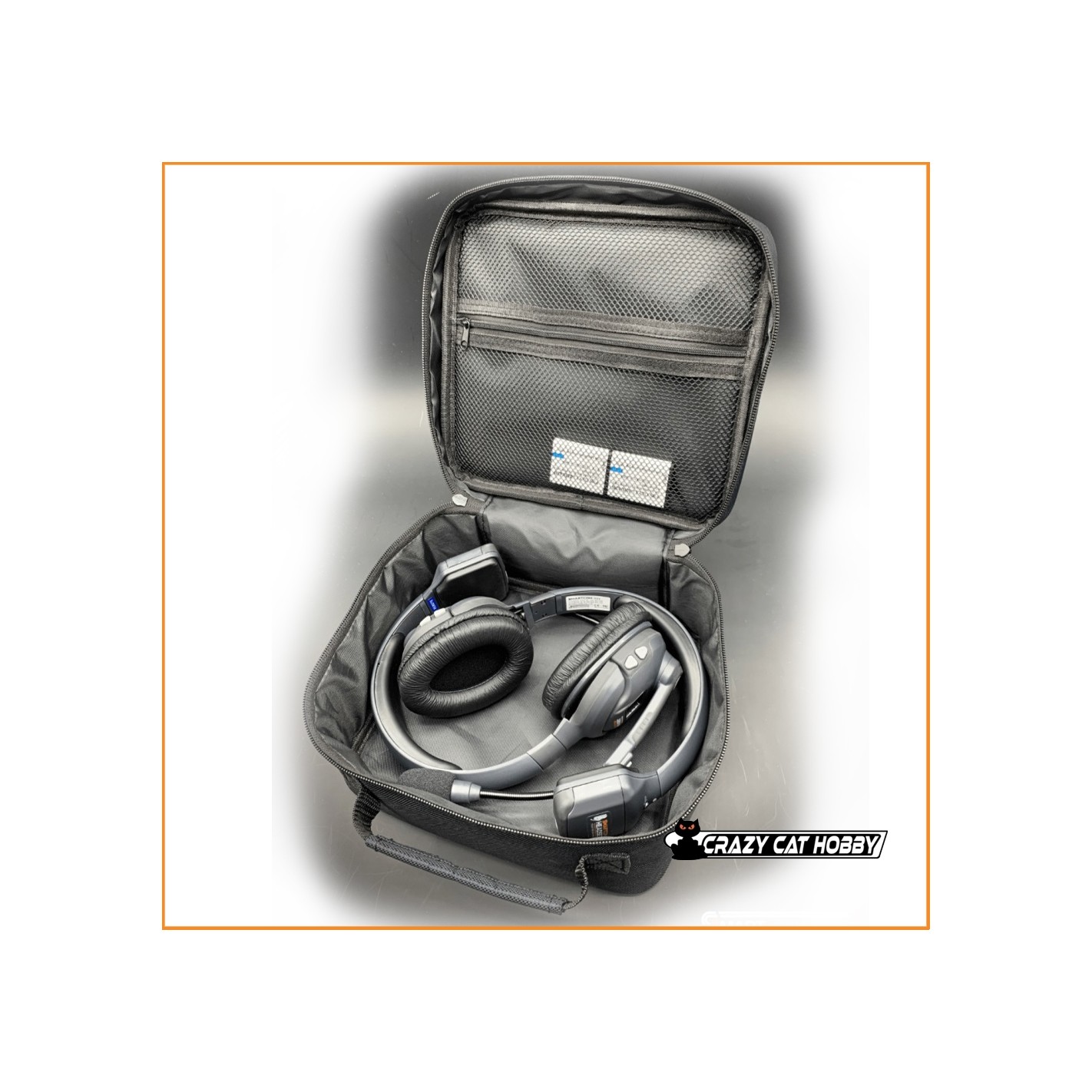

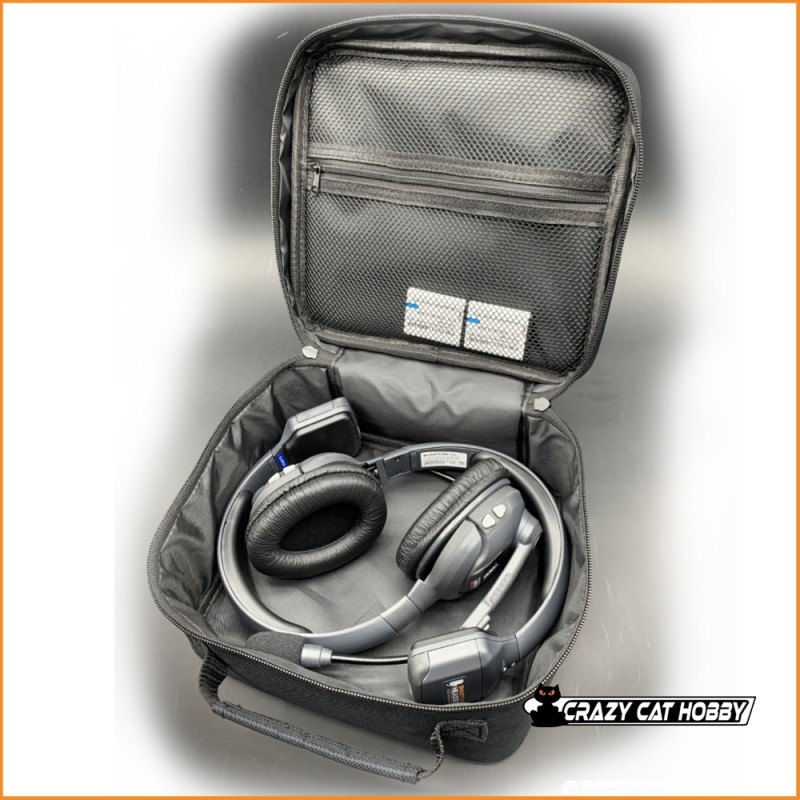

Travel bag:

A soft carry bag is included to keep your helmet system safe. The case is constructed of waterproof nylon and includes internal compartments (including a pocket with a velcro case for the charger and spare batteries).

Brand : Smartcom

Art. : 8286

EAN : -

Contents:

1 "Master" headset with LCD screen

1 "Remote" headset with LCD screen

Carrying bag

2 foams for microphones

2 Li-Ion batteries

instruction manual

Note: Type C charging cable and external charger are optional accessories.
